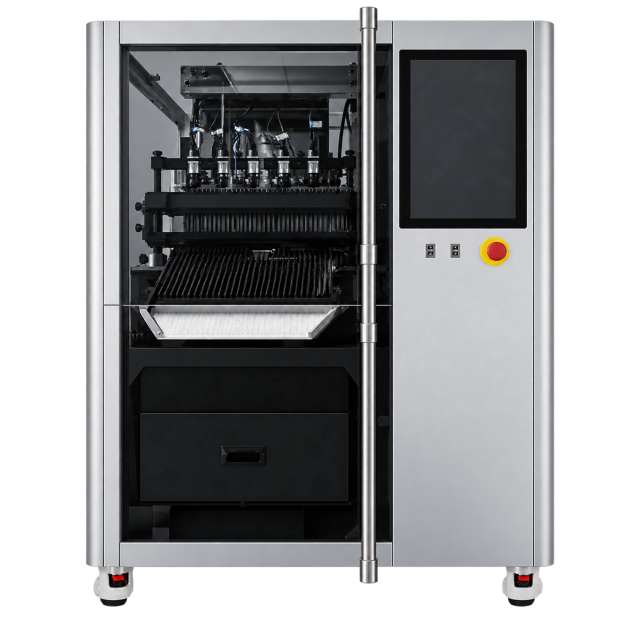

ANY-CIM-12/30/60 丨360度膠囊外觀檢測設備
ANY-CIM-12/30/60 丨360度膠囊外觀檢測設備
360-DEGREE CAPSULE APPEARANCE INSPECTION MACHINE

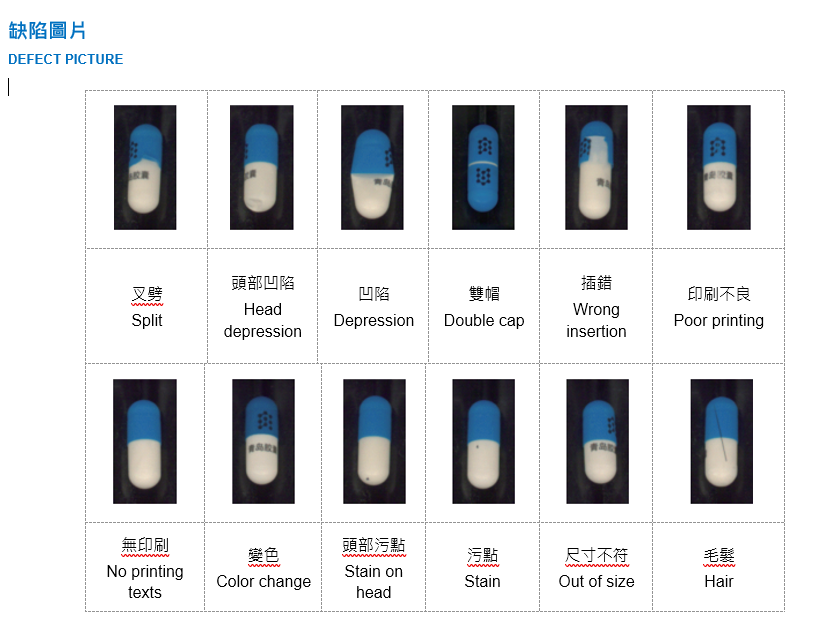

設備採用機器視覺和 AI+GPU 的高速圖像處理技術，能夠對膠囊破損、插錯、頂凹、污漬、異形等缺陷進行檢測。
自主研發的控制系統、機械傳動和光學視覺系統，保證膠囊能夠被360度三維立體無死角的精確檢測。
ANY-CIM-12/30/60 設備使用簡單、易於維護、檢測速度快、精度高，能大幅降低製藥企業的生產成本。
/
詳細介紹
技術參數
| 型號 |
Model |
ANY-CIM-12 |
ANY-CIM-30 |
ANY-CIM-60 |
| 通道數 |
Number Of Channels |
12道 |
30道 |
60道 |
| 適用劑型 |
Applicable Dosage Form |
00#~5#，標準規格以外的規格劑型以試機結果為準 |
| 顯示刻度 |
Display Scale |
污點、刮傷、異物附著、插膠、頂凹、異形、異色、變色等 |
| 檢測範圍 |
Weighing Range |
360度全方位 |
| 檢測精度 |
Check The Accuracy |
0.05mm，精度可調 |
| 檢測速度 |
Detection Speed |
8.64萬粒/h |
21.6萬粒/h |
43.2萬粒/h |
| 操作屏 |
Operation Screen |
觸屏（18.5英寸） |
|
觸屏（21.5英寸） |
| 功率 |
Power |
3kW |
3kW |
4kW |
| 周圍環境 |
Surrounding Environment |
溫度：10~30℃，濕度：30~70% |
| 外形（mm） |
Shape (mm) |
925*950*1400 |
1110*950*1400 |
1400*1100*1560 |
| 重量（kg） |
Weight (kg) |
500 |
600 |
900 |
功能及特點
| 功能特點 |
Features |
| 更換極少零件即可適用不同規格型號的膠囊檢測。 |
It can be used for detecting capsules of different specifications and models with replacement of very few parts. |
| 使用專利棱鏡結構，實現360度各類外觀缺陷檢測，無盲區。 |
The patented prism structure is used to realize 360-degree inspection of various appearance defects without blind spots. |
| 精簡結構排列、無損傷檢測，任何一環節都無需人工，降低人為風險。 |
Simplified structure arrangement realizes nondestructive testing, and no labor is required in any step, reducing human risk. |
| 採用機器視覺檢測原理和高速圖像處理技術，自動篩選、自動高速精準剔除缺陷產品。 |
The machine vision inspection principle and high-speed image processing technology are used to automatically screen and accurately eliminate defective products at high speed. |
| 部分缺陷採用深度學習算法進行分類識別。 |
Some defects are classified and identified by deep learning algorithm. |
| 檢測數據實時存儲，檢測結果、實時圖像、運行狀態動態顯示，異常報警停機。 |
Real-time storage of test data, dynamic display of test results, real-time images, and running status, and alarm and shutdown for abnormalities. |
| 採用智能缺陷分類技術，自動生成統計報表。 |
Adopt intelligent defect classification technology to automatically generate statistical reports. |
| 系統具備配方管理、三級權限管理、電子簽名、離線分析和遠程診斷功能。 |
The system has functions of recipe management, three-level authority management, electronic signature, offline analysis and remote diagnosis. |
| 系統具備數據庫管理和審計追蹤功能，可下載、存儲、備份和打印所有數據。 |
The system has database management and audit trail functions, and can download, store, backup and print all data. |
| 設備模塊化設計、易清潔維護、符合GMP標準。 |
The equipment adopts modular design, is easy to clean and maintain, and conforms to GMP standards. |
