TECHNICAL SPECIFICATIONS
| 型號 | Model | ANY-TIM-1 | ANY-TIM-2 |
| 適用片型 | Applicable film type | 素片、包衣片、糖衣片、單面/雙面印刷、有割線刻印 | |
| 適用劑型 | Applicable Dosage Form | 圓形片:直徑5-12mm、厚2-8mm；異型片:長5-21mm、寬2-8mm；標準規格以外的規格劑型以試機結果為準 | |

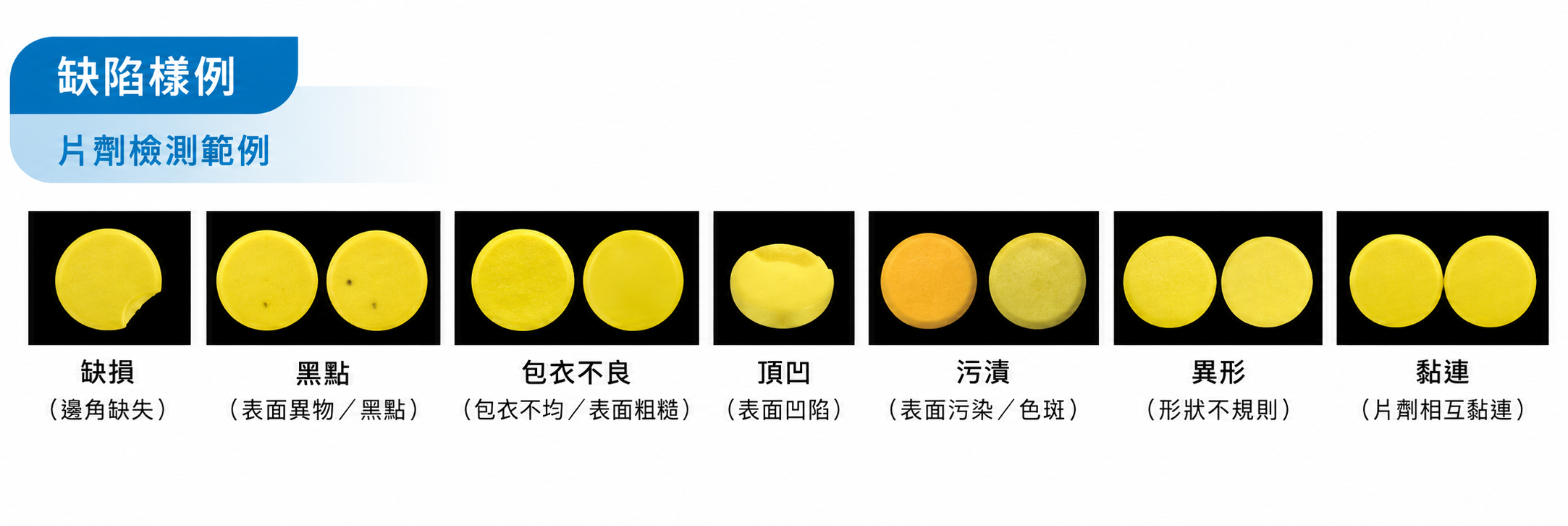

| 檢查內容 | Inspection contents | 污點、刮傷、異物附著、斷裂、缺角、變形、異色、變色、印刷模糊、印刷缺漏、包衣不良、刻印不良 | |
| 檢查面 | Inspection surface | 表背面、側面 back, side | |
| 檢測精度 | Check The Accuracy | 0.05mm，精度可調 | |
| 檢測速度 | Detection Speed | 最大20萬片/小時 | 最大40萬片/小時 |
| 操作屏 | Operation Screen | 觸屏(21.5英寸) | |
| 功率 | Power | 6kW | 8kW |
| 周圍環境 | Surrounding Environment | 溫度：10-30℃、濕度：30-70% | |
| 外形尺寸（mm） | Overall dimension(mm) | 1760*950*1655 | 1760*950*1655 |
| 重量 (kg) | Weight (kg) | 700 | 960 |
功能及特點
WORKING PRINCIPLE DIAGRAM
| 功能特點 | Features |
| 採用雙離心上料，速度快，兼容性好。 | Adopt double centrifugal feeding, which is of fast speed and good compatibility. |
| 更換極少零件即可適用不同規格的片劑檢測。 | It can be used for detecting tablets of different specifications with replacement of very few parts. |
| 精確檢測藥片正、反兩面及側邊，360度各類外觀缺陷，無盲區。 | Accurately detect the front, back and sides of the tablet to identify appearance defects at 360 degrees, without blind spots. |
| 精簡結構排列、無損傷檢測，任何一環節都無需人工，降低人為風險。 | Simplified structure arrangement realizes nondestructive testing, and no labor is required in any step, reducing human risk. |
| 採用機器視覺檢測原理和高速圖像處理技術，自動篩選、自動高速精準剔除缺陷產品。 | The machine vision inspection principle and high-speed image processing technology are used to automatically screen and accurately eliminate defective products at high speed. |
| 部分缺陷採用深度學習算法進行分類識別。 | Some defects are classified and identified by deep learning algorithm. |
| 檢測數據實時存儲，檢測結果、實時圖像、運行狀態動態顯示，異常報警停機。 | Real-time storage of test data, dynamic display of test results, real-time images, and running status, and alarm and shutdown for abnormalities. |
| 採用智能缺陷分類技術，自動生成統計報表。 | Adopt intelligent defect classification technology to automatically generate statistical reports. |
| 系統具備配方管理、三級權限管理、電子簽名、離線分析和遠程診斷功能。 | The system has functions of recipe management, three-level authority management, electronic signature, offline analysis and remote diagnosis. |
| 系統具備數據庫管理和審計追蹤功能，可下載、存儲、備份和打印所有數據。 | The system has database management and audit trail functions, and can download, store, backup and print all data. |
| 雙篩選系統：不良品回收、未檢查品回收。 | Double screening system: defective product recovery, unchecked product recovery. |
| 設備模塊化設計、易清潔維護、符合GMP標準。 | Equipment modular design, easy to clean and maintain, in line with GMP standards. |
