TECHNICAL SPECIFICATIONS
| 型號 | Model | ANY-SCIM-16 | ANY-SCIM-24 |
| 通道數 | Number Of Channels | 16道 | 24道 |
| 適用劑型 | Applicable Dosage Form | 各種規格軟膠囊 | |
| 顯示刻度 | Display Scale | 污點、刮傷、異物附著、異形、變形、異色、變色等 | |
| 檢測範圍 | Weighing Range | 360度全方位 | |
| 檢測精度 | Check The Accuracy | 0.05mm，精度可調 | |
| 檢測速度 | Detection Speed | 13.44萬粒/h | 20.16萬粒/h |
| 操作屏 | Operation Screen | 觸屏(21.5英寸) | |
| 功率 | Power | 3kW | 4kW |
| 周圍環境 | Surrounding Environment | 溫度：10-30℃、濕度：30-70% | |
| 外形(mm) | Shape (mm) | 2034*960*1700 | 2034*1220*1700 |
| 重量 (kg) | Weight (kg) | 800 | 950 |
功能及特點
WORKING PRINCIPLE DIAGRAM
| 功能特點 | Features |
| 無需更換零件即可適用不同規格型號的軟膠囊檢測。 | It can be used for detecting soft capsules of different specifications and models without replacing parts. |

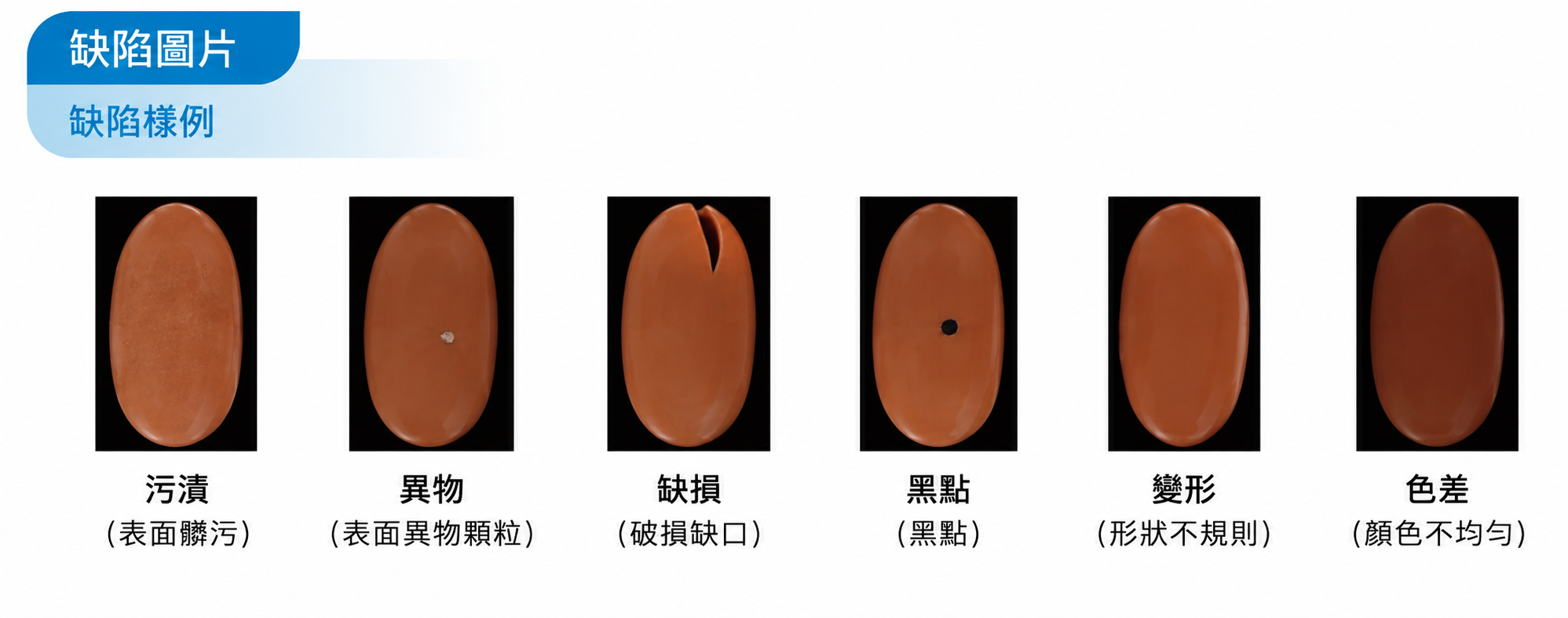

| 360度各類外觀缺陷檢測，無盲區。 | It can be used to realize 360-degree inspection of various appearance defects without blind spots. |
| 精簡結構排列、無損傷檢測，任何一環節都無需人工，降低人為風險。 | Simplified structure arrangement realizes nondestructive testing, and no labor is required in any step, reducing human risk. |
| 採用機器視覺檢測原理和高速圖像處理技術，自動篩選、自動高速精準剔除缺陷產品。 | The machine vision inspection principle and high-speed image processing technology are used to automatically screen and accurately eliminate defective products at high speed. |
| 部分缺陷採用深度學習算法進行分類識別。 | Some defects are classified and identified by deep learning algorithm. |
| 檢測數據實時存儲，檢測結果、實時圖像、運行狀態動態顯示，異常報警停機。 | Real-time storage of test data, dynamic display of test results, real-time images, and running status, and alarm and shutdown for abnormalities. |
| 採用智能缺陷分類技術，自動生成統計報表。 | Adopt intelligent defect classification technology to automatically generate statistical reports. |
| 系統具備配方管理、三級權限管理、電子簽名、離線分析和遠程診斷功能。 | The system has functions of recipe management, three-level authority management, electronic signature, offline analysis and remote diagnosis. |
| 系統具備數據庫管理和審計追蹤功能，可下載、存儲、備份和打印所有數據。 | The system has database management and audit trail functions, and can download, store, backup and print all data. |
| 設備模塊化設計、易清潔維護、符合GMP標準。 | The equipment adopts modular design, is easy to clean and maintain, and conforms to GMP standards. |
